Tomei ARMS MX8280 Journal Bearing Bolt-On Turbo for Evo X (TB401A-MT02A)
The Tomei journal bearing turbo for the Evo X offers a CNC billet compressor wheel, made from aerospace-grade materials, features thinner blades for improved airflow and turbo spool for apx 450HP. The multi-rate billet actuator has a large capacity and reinforced forged billet construction, including six springs for fine boost adjustments. The swivel-type nipple allows for greater freedom when routing hoses, and you can combine up to three springs to fine tune for the perfect setup.
Vehicle Fitment:
2008-2015 Mitsubishi Lancer Evolution X
(4B11/ CZ4A)
| Compressor Wheel: | Turbine Wheel: | ||
| â’¶IND(mm) | 61.4 | â’¸EXD(mm) | 58.8 |
| â’·EXD(mm) | 82 | â’¹IND(mm) | 67.0 |
| Trim | 56 | Trim | 77 |
| Blades | 6/6 | Blades | 11 |
| Material | A2618 | Material | K418 |
| Production | CNC Billet | Production | Cast |
| Compressor Housing: | Turbine Housing: | ||
| IND(mm) | 62.4 | IND(mm) | 4B11 |
| EXD(mm) | 40.2 | IND(mm) | 4B11 |
| A/R | 0.51 | A/R | 0.89 |
More Info:

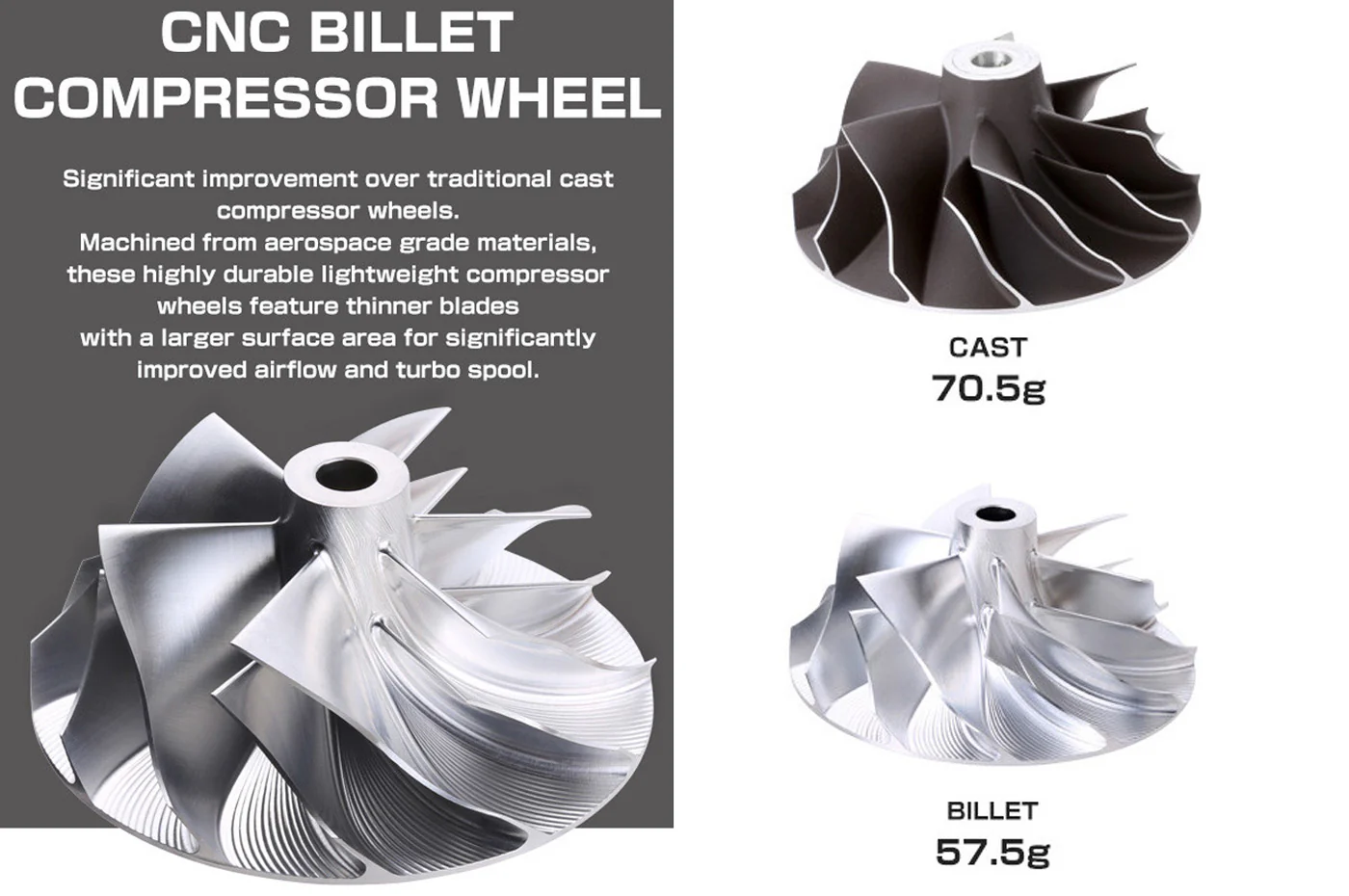

CNC BILLET COMPRESSOR WHEEL
Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface area for significantly improved airflow and turbo spool.

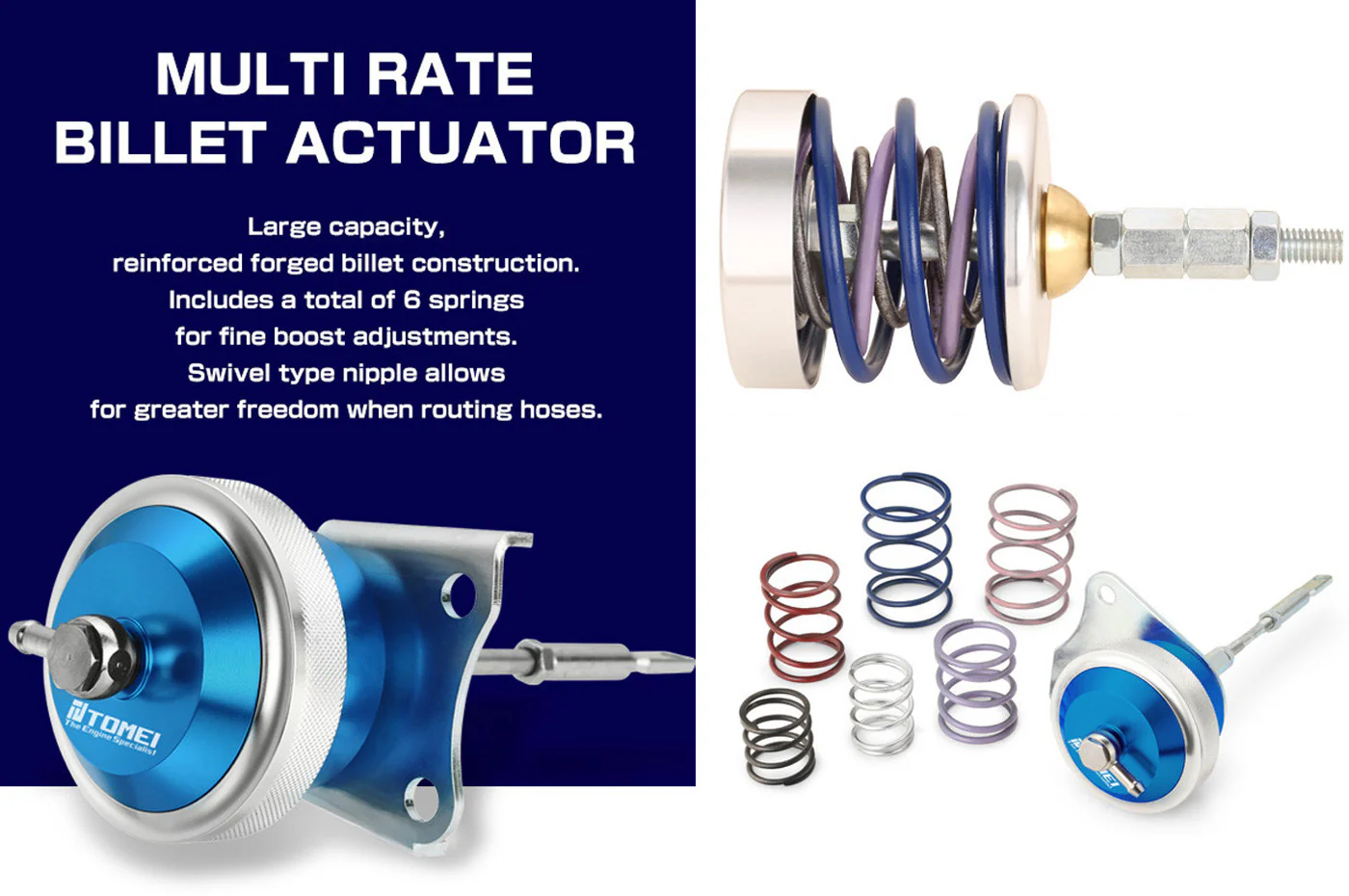

MULTI RATE BILLET ACTUATOR
Large capacity, reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.
Combine up to 3 springs to find the perfect setup. (6 springs included)
